Promat’s Revolutionary Fire rated wall providing fire ratings upto 4 hours intergrity and insulation. Promat provides detailed design of the sections upto heights of 18m and more. The sections used in Promat Partition are optimised to minimise the thickness of the partition. Morover, a detailed Shop drawing is provided by us showing each and every minute detail of the partition, Punctures in the partition for allowing passage of services and utilities.

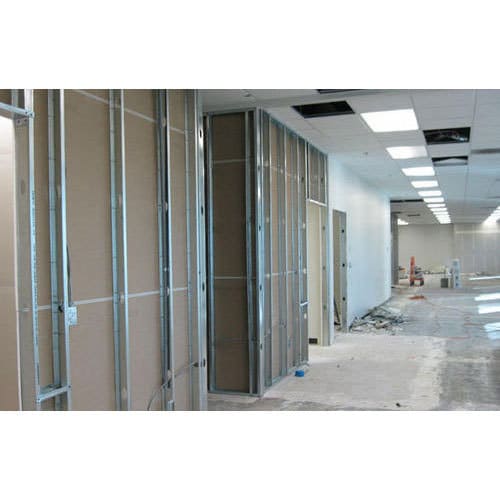

We are the best technical solution providers when it comes to high rise Fire Rated Partition . We design partitions for self load, wind load and impact load as per IS Standards. When the height of the partition goes above 5m, it is very important to design the framing of the partition, i.e. the thickness of the studs, the spacing of the studs, the fixing of the bottom track, expansion gap between the top track and the vertical studs, and the expansion joints in the partition.
The fixing of the boards also has technical procedure in order to give the best, non undulating surface. The first layer of the boards has to be first calculated by spacing the cut boards at the end and whole boards in between. There has to be screwing at nominal 200mm centers by 25mm self tapping screws using battery operated screwdrivers with screw stoppers. The torque of the screw driver also has to be set such the surface of the top of the screw is 2 mm below the board surface.
After installing the insulation, other side boarding has to be completed. All the joints in the boards have to be filled with high quality jointing compound and then taped with glass fibre tapes and again flushed with compound. All the screw holes also need to be finished with compound. The perimeter of the partition has to be sealed with backer rod and acrylic sealant. Once the compound is dried, it has to be scrubbed, sanded and finally painted.
We are not the Biggest, but the smartest Fire Proof Partition provider, providing 100% genuine and tested insulated wooden Fire Doors. Insulation is the most important characteristic in a Fire Door and we are proud to be the only company in India to supply Wooden Fire Door 120mins insulation tested at CBRI Roorkee, India and at Warring ton Fire Laboratory UK.
Also having Multiple Product – Industrial Door, Fire Resistant Doors, Fire Doors, Fire Proof Doors, Blast Proof Doors, Fire Rated Door, Fire Safety Doors, Fire Retardant Door, Fire Stopping System, Trap Door, fire rated glass , Access Panels, Ceilings, Commercial Vehicle Body, Drywall Partitions, Best Fire rated paint, fire rated Partition , fire rated Shaft Doors, Sliding Doors, Access Panels for Commercial Industry, Fire Staircase.
